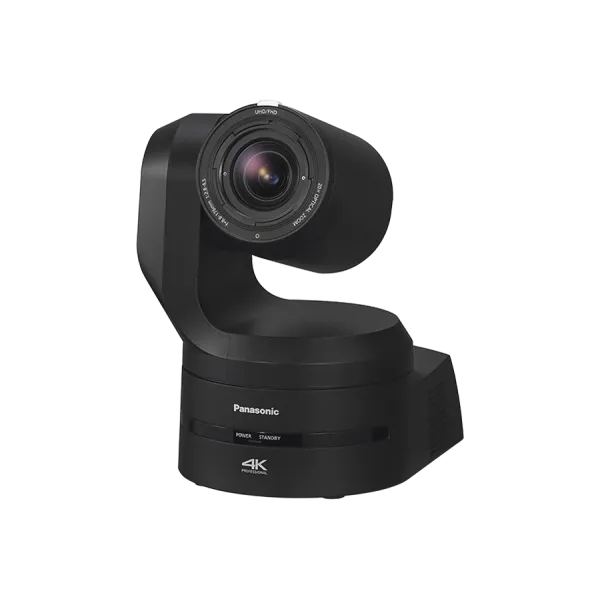

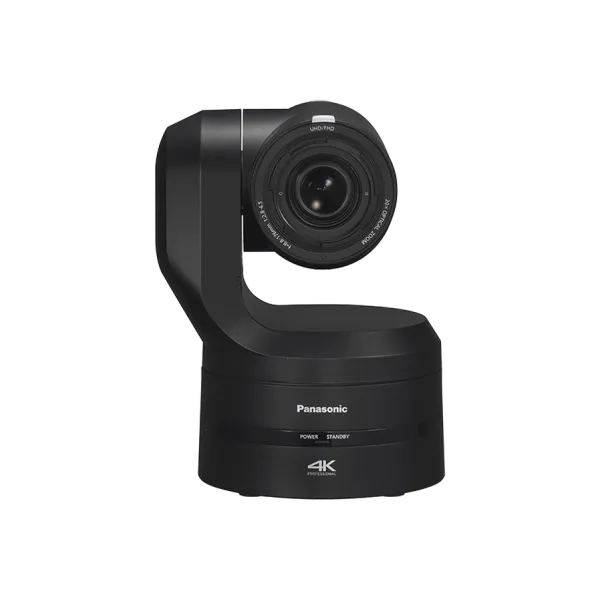

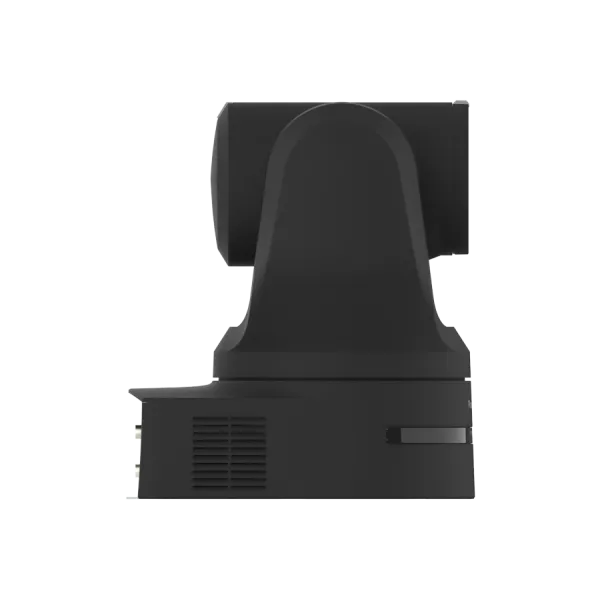

Panasonic AW UE160

Caméra robotisée 4K HDR/HD, 1 CMOS 1″, 20x – 12G-SDI/IP/Fibre optique

La caméra PTZ 4K UE160 est dotée d’un nouveau capteur MOS 1″ 4K qui offre la plus haute sensibilité de toute la gamme PTZ de Panasonic. Le nouveau filtre optique passe-bas réduit l’effet de moirage pour une qualité d’image plus nette lors des prises de vue contre un mur de LED. Sa fréquence d’images élevée aidera à capturer des séquences au ralenti en HD.

Dans la Boîte:

Corps de caméra AW-UE160
Support de montage au plafond
Couvercle de câble
Fil de sécurité avec vis

Spécification Technique:

Current consumption	5.0 A (XLR IN connector), 1.5A (PoE++ power supply)
Power Requirements	12VDC±10%(10.8V to 13.2V)
Ambient Operating Temperature	0 °C to +40 °C (32 °F to +104 °F)
PoE++	IEEE802.3bt standard :DC 42 V to 57V (Camera Input)*Limited in function when PoE used.(Software authentication (LLDP) is supported))
Storage Temperature	–20 °C to +50 °C (–4 °F to +122 °F)
Ambient Operating Humidity	20 % to 90 % (no condensation)
Mass	Approx. 4.6kg (10.14lbs) (excluding mount bracket)
Finish	AW-UE160W : Pearl White AW-UE160K : Black
Controller Supported	AW-RP150，AW-RP60，AK-HRP1010，AK-HRP1015，AK-HRP250 *Other ROP will be compatible in the future.
LENS	Motorized Optical 20xZoom F2.8 to F4.5(f=8.8 mm to 176.0 mm,35mm equivalent:24.5 mm to 490.0 mm)i.Zoom, D.Extender
Imaging Sensors	1-type　(1″) 4K MOSx1 Effective Pixels: Approx. 9,620,000 pixels
Camera Unit	–
Optical Filter	Through、1/4, 1/16, 1/64 *equipped with Low pass filter(Through is used as « night mode »)
Focus	Switching between auto and manual
Conversion Lens	Not Supported
Angle of View Range	Horizontal: 75.1°(wide) to 4.0°(tele) Vertical: 46.7°(wide) to 2.3°(tele) Diagonal: 82.8°(wide) to 4.6°(tele)
MINIMUM ILLUMINATION	2lx(F2.8, 59.94p, 50IRE, +42dB, without accumulation)
Focus Distance	Entire zooming range: 1000 mm, Wide end: 100 mm
Standard Sensitivity	F11/2,000lux (Normal), F14/2,000lux
Color Separation Optical Systems	1MOS
Horizontal Resolution	1,600 TV Typ (center area, UHD Mode, Wide)
Gain Selection	Auto, 0dB to 36dB *1 dB step increments can be set.
Frame Mix	Auto, 0dB, 6dB, 12dB, 18dB, 24dB*If format is set in 2160/29.97p, 2160/23.98p, 2160/24p, 2160/25p, 1080/29.97p, 1080/25p, it cannot be set.
Electronic Shutter Speed	60p/59.94p/59.94i: 1/100, 1/120, 1/125, 1/250, 1/500, 1/1,000, 1/1,500, 1/2,00029.97p: 1/48, 1/50, 1/60, 1/96, 1/100, 1/120, 1/125, 1/250, 1/500, 1/1,000, 1/1, 500, 1/2,000 23.98p/24p: 1/48, 1/50, 1/60, 1/96, 1/100, 1/120, 1/125, 1/250, 1/500, 1/1,000, 1/1,500, 1/2,000 50p/50i: 1/60, 1/100, 1/125, 1/250, 1/500, 1/1,000, 1/1,500, 1/2,000 25p: 1/48, 1/50, 1/60, 1/96, 1/100, 1/125, 1/250, 1/500, 1/1000, 1/1,500, 1/2,00 59.94p･120fps: 1/125, 1/250, 1/500, 1/1,000, 1/1,500, 1/2,000 50p･100fps: 1/125, 1/250, 1/500, 1/1,000, 1/1,500, 1/2,000
Synchro scan	60p/59.94p/59.94i:60.00Hz to 7,200Hz 29.97p:30.00Hz to 7,200Hz 23.98p:24.00Hz to 7,200Hz 50p/50i:50.00Hz to 7,200Hz 25p:25.00Hz to 7,200Hz 59.94p･120fps:120Hz to 7,200Hz 50p･100fps:100Hz to 7,200Hz
WHITE BALANCE	ATW､3200K, 5600K ATW Speed : Normal / Slow / Fast AWB-A､AWB-B VAR (selectable between 2000 K and 15000 K by designating a value)
Gamma	HD/NORMAL/CINEMA1/CINEMA2*HLG is set in other menuMASTER GAMMA (0.15~0.75)R GAMMA (-75~+75)B GAMMA (-75~+75)
Scene File	Scene 1 to 8
Chroma Amount Variability	OFF, -100% to 40%
Output Format (UHD/FHD SDI)	4K2160/59.94p, 2160/50p, 2160/29.97p(Native), 2160/25p(Native), 2160/24p(Native), 2160/23.98p(Native) HD1080/119.88p, 1080/100p, 1080/59.94p, 1080/50p, 1080/29.97p(Native), 1080/25p(Native), 1080/24p(Native), 1080/23.98p(Native), 1080/59.94i, 1080/50i, 720/59.94p, 720/50p1080/119.88p and 1080/100p use two 3G/SDI OUTPUT1/2 channels.No output from 12G/SDI.
Output Format (HDMI)	4K 2160/59.94p, 2160/50p, 2160/29.97p(Native), 2160/25p(Native), 2160/24p(Native), 2160/23.98p(Native)HD 1080/119.88p, 1080/100p, 1080/59.94p, 1080/50p, 1080/29.97p(Native), 1080/25p(Native), 1080/24p(Native), 1080/23.98p(Native), 720/59.94p, 720/50p
Output Format (Fiber(Only Video))	4K 2160/59.94p, 2160/50p, 2160/29.97p(Native), 2160/25p(Native), 2160/24p(Native), 2160/23.98p(Native)HD 1080/59.94p, 1080/50p, 1080/29.97p(Native), 1080/25p(Native), 1080/24p(Native), 1080/23.98p(Native), 1080/59.94i, 1080/50i, 720/59.94p, 720/50p
Output Format (ST2110)	HD 1080/59.94p, 1080/50p, 1080/29.97p(Native), 1080/25p(Native), 1080/24p(Native), 1080/23.98p(Native), 720/59.94p, 720/50p
HDMI	HDMI 2.0 connector 4:2:2/10bit HDCP is not supported. Viera Link is not supported.
Synchronization System	Internal/External synchronization (BBS/Tri-level sync)

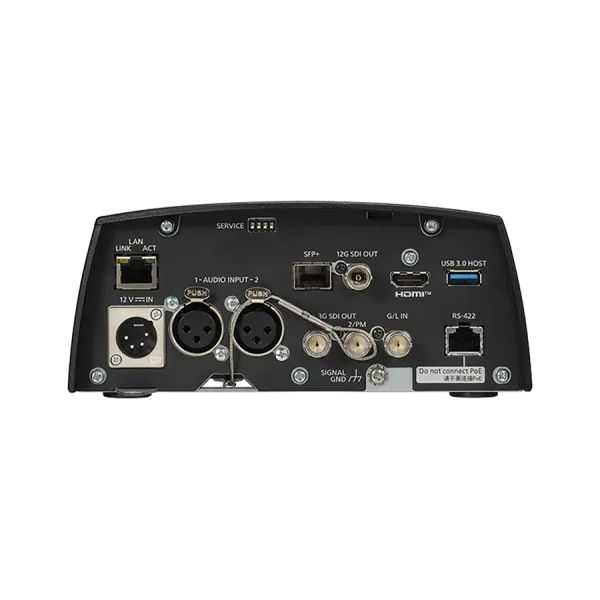

INPUT	DC 12 V IN, G/L IN(BNC)
G/L IN	BBS (Black Burst Sync), tri-level sync supported)
OUTPUT	–
AUDIO INPUT 1/2	XLR(2ch) or MIC/LINE Input compatibles /HDMI /IP)AAC compatibility (compatible with IP only)XLR3 female balanced input 2chDuring MIC inputInput level: -50dBu or -60dBu/-40dBu(0 dB=1 V/Pa, 1 kHz)Phantom power compatible､Supply voltage:47 V±2 VInput impedance:Approx. 10kΩDuring LINE inputInput level :0 dBu ( or +4dBu/-20dBu)Input impedance:Approx. 10kΩInput volume variable range: -40 dB ~0dB~+20 dB(1 dBstep)Embedded audio output level:-12 dBFS/-18dBFS/-20dBFS Sampling frequency:48 kHz Quantization bit rate : 24 bit(SDI, HDMI), 16bit(IP)
12G SDI OUT	SMPTE2082-1, SMPTE424M /SMPTE292M / 75 Ω(BNC×1) *Level-A/Level-B supported
3G SDI OUT1	SMPTE424M /SMPTE292M / 75 Ω(BNC×1)　*Level-A/Level-B supported
3G SDI OUT2/PM	SMPTE424M /SMPTE292M / 75 Ω(BNC×1)　*Level-A/Level-B supported
SFP+	SFP+ standard (Single Fiber) *This unit does not support input by optical signals
LAN	LAN connector for IP control (RJ-45)
USB	USB3.0 HOST(5G mobile router with USB tethering support)
RS-422	CONTROL IN RS422A (RJ-45)
INPUT/OUTPUT	–
SFP+ (ST2110)	ST2110-10/-20/-21/-30
IP connecting cable	if you have PoE++ ethernet hub LAN cable 1( category 5e or above､straight cable)Max100 m If you don’t have PoE++ ethernet hub LAN cable 1( category 5e or above､straight cable)Max100 m 1 STP(Shielded Twisted Pair) is recommended 2 Category 6 or above is used for 4K video transmission.
SFP+(ST2110)	compatible protocol: -ST2110-10/-20/-21/-30 -PTP ST2059-2 -NMOS IS-04/IS-05 output number:video x3(Full, Crop, Monitor), Audio x2 Input number:video x1(RETURN) Video format:FHD　*Same as system format
Pan-tilt Head Control	–
AW protocol connecting cable	LAN cable* (category 5e or above, straight cable) Max1000 m *STP (Shielded Twisted Pair) is recommended
Pan/Tilt Operation Speed	Speed range:0.08 °/s ~1800°/s( Normal mode) *3 speed modes installed Normal:~60°/s,Fast1:~90°/s,Fast2:~180°/s
Quietness	NC35 or less *When standing still, NC25 or less
Tilting Range	-30°~ 210
Panning range	±175°
Pan-tilt Head Unit	–
Installation Method	Stand-alone (Desktop) or suspended (Hanging)
Windows	Windows®10 Microsoft Edge Google Chrome
Supported operating systems and web browsers	–
Image Resolution	3840×2160, 1920×1080, 1280×720, 640×360
Mac	macOS 10.13 / Safari 13 macOS 10.14 / Safari 13 macOS 10.15 / Safari 13 macOS 10.15 / Google Chrome
Android	Android OS Google Chrome
IP Streaming	–
Image Streaming Mode	JPEG(MJPEG), H.264, H.265, NDI\|HX Ver2, High Bandwidth NDI
Image Transmission setting (JPEG)	Frame rate : Max 30fps No bit rate specified JPEG and H.264, JPEG and H.265 simultaneous operation depends on bit rate Image quality(Fine/Normal)
Image Transmission Setting (H.264)	Transmission Type : Unicast port (AUTO) Unicast port (MANUAL) Multicast port Transmission mode :CBR, VBR Frame Rate [60Hz] 5fps/15fps/30fps/60fps (UHD : 30fps,60fps) [50Hz] 5fps/12.5fps/25fps/50fps (UHD : 25fps,50fps) Max to Min Bit Rate 2048kbps/4096kbps/8192kbps/10240kbps/12288kbps/14336kbps/20480kbps/24576kbps/51200kbps/76800kbps
iPhone / iPad / iPod touch	iOS, Safari, iPadOS
Image Transmission Setting (H.265)	Transmission Type : Unicast port (AUTO) Unicast port (MANUAL) Multicast port Transmission Mode :CBR,VBR Frame Rate [60Hz] 30fps / 60fps [50Hz] 25fps / 25fps Max to Min Bit Rate 2048kbps/4096kbps/8192kbps/10240kbps/12288kbps/14336kbps/20480kbps/24576kbps/51200kbps/76800kbps
Supported protocol	Network Protocol: ICMP, ARP, GARP, MLD Transmission Protocol: TCP/IP, UDP/IP Application Protocol: IPv4 : HTTP, HTTPS, DNS, NTP, DHCPv6,MDNS, SNMP, 802.1X IPv6 : HTTP, HTTPS, DNS, NTP, DHCPv4, MDNS, SNMP, 802.1X Video Streaming Protocol: RTP/RTCP over RTSP, RTMP, RTMPS, SRT, MPEG2-TS over UDP, NDI\|HX version 2, High bandwidth NDI, RIST External Device Cooperation Protocol:FreeD, TSL5.0, SNMP
Audio Compression Type	AAC-LC, 48kHz/16bit/2ch
Output Format	Video Format(Full x1, MONI x1.Crop x1, all of these same format)1080/60p(Just), 1080/59.94p, 50p, 1080/59.94i, 50i, 1080/29.97p(Native)25p(Native), 1080/24p(Just), 1080/23.98p(Native), 720/59.94p, 50pAudio Specification MIC1/2PCM/48khz/24bit/1ch x2
NDI (High Bandwidth NDI,NDI\|HX Ver.2)	–
Output Format (High bandwidth NDI)	4K 2160/59.94p, 2160/50p, 2160/29.97p, 2160/25p, 2160/24p, 2160/23.98p HD 1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p, 1080/25p, 1080/24p, 1080/23.98p､720/59.94p, 720/50p
Image Resolution (NDI\|HX Ver.2)	1920×1080, 1280×720
Image Streaming Setting	High Bandwidth NDI Transmisiion Type : TCP /UDP Unicast/Multicast Bit Rate : Max 250MbpsNDI\|HX version.2: Transmission Type : TCP/UDP Unicast/Multicast Frame Rate [60Hz] 5fps/15fps/30fps/60fps [50Hz] 5fps/12.5fps/25fps/50fps Max Bit Rate 512kbps/768kbps/1024kbps/1536kbps/2048kbps/3072kbps/ 4096kbps/6144kbps/8192kbps/10240kbps/12288kbps/14336kbps/ 16384kbps/20480kbps/24576kbps
Audio Compression Type 2	High Bandwidth NDI:AAC, 48kHz, 2ch NDI\|HX Ver.2:AAC-LC, 48kHz/16bit/2ch
ST2110	–
Number of Output (TX)	Video:3 line (Full x1, MONI x1.Crop x1) Audio:2 line Auxiliary data:No output
Number of Input (RX)	Video:1 line(RETURN) *Out from 3G SDI OUT2(Video is changed in the OSD menu) Audio:No input Auxiliary data:No input
Optional Accessories	–
Cropping	Select from 3 types of images from 3G/SDI_OUTPUT2, Crop_Zoom available
Image Stabilization	OIS 2-axis + Hybrid method of roll direction correction MENU switching :select between OFF/OIS/Hybrid(Stable)/Hybrid(Pan/Tilt)
Power LED	ON/OFF control
Tripod Screw Penetration Measures	Yes
Privacy Mode	The lens surface faces downward when standing by (ON/OFF)
Input Format	Video Format (Full x1, MONI x1.Crop x1, all of these same format)1080/60p(Just), 1080/59.94p, 50p, 1080/59.94i, 50i, 1080/29.97p(Native)25p(Native), 1080/24p(Just), 1080/23.98p(Native), 720/59.94p, 50p
New Feature	–
HDR/SDR	HLG/BT.2020 compatible, SDR/BT.709 compatible
F Number Display	Displayed on the AW-RP150 and AW-RP60 sides
NDI	AW-UE160:High Bandwidth NDI, NDI\|HX Ver.2 included as standard
IP menu display	supported　*Non-synchronous with SDI-OUT
VR (FreeD) (IP/RS422)	supported
Yellow Tally	supported
PTP	supported
5G/WiFi 6	Compatible with recommended products only
WFM display	Output with video superimposed from 3G/SDI_OUTPUT2
Return Video Output	Output return video input from ST2110, NDI via SDI_OUT2
Horizontal Level Gauge	ON/OFF control in OSD MENU
Wireless Remote Controller	AW-RM50AG（Size « AA » dry battery x 2, obtained separately）
Dimensions (W x H x D)	213.0 mm x 277.0 mm x 240.0 mm(8.39inches x 10.91inches x 9.45inches) [excluding protrusions, cable cover, ceiling mount bracket]
Supported Format	ST2110:10/20/21/30 PTP:ST2059-2 NMOS:IS-04/IS-05
